How to Specify a Spun Concrete Pole

A spun concrete pole, like any pole supporting conductors, has various loads applied by line tension, changes of line direction, wind, and ice loadings if applicable, on both the conductors and the pole itself. Because of their durability and reliability, spun concrete poles have a favorable load factor specified in ANSI transmission and distribution line requirements. When specifying poles for distribution and transmission use, it is common to select a pole based on tip load requirements or by design.

Tip Load

Concrete poles are grouped in alphabetically labelled classes which have a bending capacity appropriate to the design requirements. The class is defined in terms of a guaranteed minimum ultimate transverse load applied 2 feet down from the tip of the pole.

The ground line moment capacity depends on the length of the pole since that moment is the product of the class minimum ultimate transverse load and the distance between the point of application (2 feet from the tip) and the ground line.

Note, the wood classification system is based on an average strength where the concrete pole class is based on minimum strength, so the two classification systems cannot be directly compared.

Concrete Pole ClassMinimum Ultimate Transverse Load (lbs)
C1200
D1500
E1900
F2400
G3000
H3700
J4500
K5400
L6400
M7500
N8700
O10000

Design Based

The strength of a concrete pole is defined as a minimum strength which does not vary over time. Poles are designed and manufactured so that all poles will exceed the specified minimum strength which will be present for the life of each pole. In contrast, because wood is a naturally grown product with natural defects such as splits and knots, strength is defined as the average strength of all poles of that species and dimension at the time of installation. Since some poles in a batch will have strengths less than the average and because there is further deterioration with time, a strength factor is utilized.

The NESC has determined the strength factor for concrete as 1.0 compared to 0.65 and 0.85 for wood in Grade B and Grade C construction, respectively.  This strength factor is especially important when converting wood poles to spun concrete poles so that the wood pole is replaced with a concrete pole that is designed to the appropriate strength.

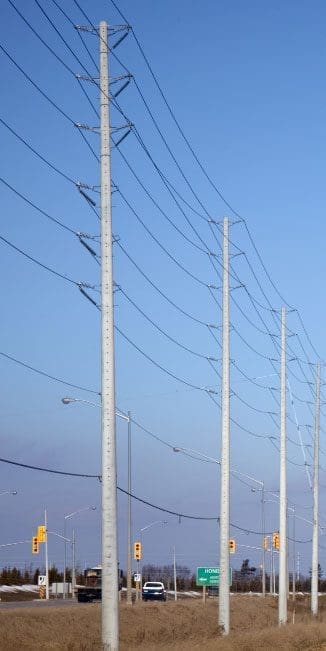

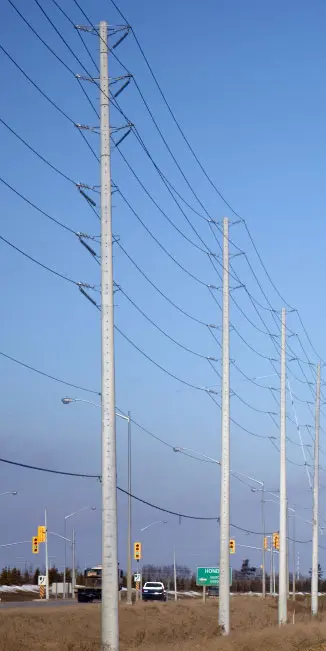

For higher voltage lines with large conductor spacings and multiple circuits, there may be major reactions distributed over a substantial length of the pole. There may also be many different load combinations along a line, depending on pole spacing and line angles.

For these types of applications, it is typical to specify poles with a load tree for each pole loading variation along the line. This can be specified by the customer or determined by StressCrete using multiple elevations at which loads can be applied so that the required capacity of the pole can be accurately computed along its entire length.

Pole Specification Chart

SPUN CONCRETE POLES Wood Poles
Catalog Code Pole Length (ft.) Above Grade Height (ft.) Burial Depth (ft.)* Tip Diameter (in.)** Butt Diameter (in.) Nominal Weight (lbs) Concrete Pole Class Concrete Pole Min. Ultimate Class Transverse Load (lbs) Approx. Wood Pole Class Approx. Wood Pole Equivalent Min. Ultimate Transverse Load (lbs)***
E300-CPR-G 30' 25' 5' 6.5" 11.9" 2040 C 1200 5 1235
E300-DPR-G 30' 25' 5' 6.5" 11.9" 2040 D 1500 4 1560
E300-EPR-G 30' 25' 5' 6.5" 11.9" 2040 E 1900 3 1950
E300-FPR-G 30' 25' 5' 6.5" 11.9" 2075 F 2400 2 2405
E350-CPR-G 35' 29' 6" 5' 6" 6.5" 12.8" 2545 C 1200 5 1235
E350-DPR-G 35' 29' 6" 5' 6" 6.5" 12.8" 2545 D 1500 4 1560
E350-EPR-G 35' 29' 6" 5' 6" 6.5" 12.8" 2545 E 1900 3 1950
E350-FPR-G 35' 29' 6" 5' 6" 6.5" 12.8" 2590 F 2400 2 2405
E400-CPR-G 40' 34' 6' 6.5" 13.7" 3095 C 1200 5 1235
E400-DPR-G 40' 34' 6' 6.5" 13.7" 3095 D 1500 4 1560
E400-EPR-G 40' 34' 6' 6.5" 13.7" 3095 E 1900 3 1950
E400-FPR-G 40' 34' 6' 6.5" 13.7" 3150 F 2400 2 2405
E450-DPR-G 45' 38' 6" 6' 6" 6.5" 14.6" 3695 D 1500 4 1560
E450-EPR-G 45' 38' 6" 6' 6" 6.5" 14.6" 3695 E 1900 3 1950
E450-FPR-G 45' 38' 6" 6' 6" 6.5" 14.6" 3760 F 2400 2 2405
E450-GPR-G 45' 38' 6" 6' 6" 8.25" 16.35" 4820 G 3000 1 2925
E500-DPR-G 50' 43' 7' 6.5" 15.5" 4340 D 1500 4 1560
E500-EPR-G 50' 43' 7' 6.5" 15.5" 4380 E 1900 3 1950
E500-FPR-G 50' 43' 7' 6.5" 15.5" 4455 F 2400 2 2405
E500-GPR-G 50' 43' 7' 8.25" 17.25" 5610 G 3000 1 2925
E500-HPR-G 50' 43' 7' 8.25" 17.25" 5650 H 3700 H1 3510
E550-DPR-G 55' 47' 6" 7' 6" 6.5" 16.4" 5030 D 1500 4 1560
E550-EPR-G 55' 47' 6" 7' 6" 6.5" 16.4" 5080 E 1900 3 1950
E550-FPR-G 55' 47' 6" 7' 6" 6.5" 16.4" 5175 F 2400 2 2405
E550-GPR-G 55' 47' 6" 7' 6" 8.25" 18.15" 6450 G 3000 1 2925
E550-HPR-G 55' 47' 6" 7' 6" 8.25" 18.15" 6500 H 3700 H1 3510
E600-FPR-G 60' 52' 8' 6.5" 17.3" 5935 F 2400 2 2405
E600-GPR-G 60' 52' 8' 8.25" 19.05" 7340 G 3000 1 2925
E600-HPR-G 60' 52' 8' 8.25" 19.05" 7405 H 3700 H1 3510
E650-FPR-G 65' 56' 6" 8' 6" 6.5" 18.2" 6740 F 2400 2 2405
E650-GPR-G 65' 56' 6" 8' 6" 8.25" 19.95" 8285 G 3000 1 2925
E650-HPR-G 65' 56' 6" 8' 6" 8.25" 19.95" 8360 H 3700 H1 3510
E700-FPR-G 70' 61' 9' 6.5" 19.1" 7595 F 2400 2 2405
E700-GPR-G 70' 61' 9' 8.25" 20.85" 9275 G 3000 1 2925
E700-HPR-G 70' 61' 9' 8.25" 20.85" 9365 H 3700 H1 3510
E750-GPR-G 75' 65' 6" 9' 6" 8.25" 21.75" 10320 G 3000 1 2925
E750-HPR-G 75' 65' 6" 9' 6" 8.25" 21.75" 10420 H 3700 H1 3510
E750-JPR-G 75' 65' 6" 9' 6" 8.25" 21.75" 10565 J 4500 H2 4160
E750-KPR-G 75' 65' 6" 9' 6" 9.5" 23" 11865 K 5400 H3 4875
E750-LPR-G 75' 65' 6" 9' 6" 9.5" 23" 12100 L 6400 H4 5655
E800-GPR-G 80' 70' 10' 8.25" 22.65" 11415 G 3000 1 2925
E800-HPR-G 80' 70' 10' 8.25" 22.65" 11530 H 3700 H1 3510
E800-JPR-G 80' 70' 10' 8.25" 22.65" 11680 J 4500 H2 4160
E800-KPR-G 80' 70' 10' 9.5" 23.9" 13080 K 5400 H3 4875
E800-LPR-G 80' 70' 10' 9.5" 23.9" 13340 L 6400 H4 5655
E850-GPR-G 85' 74' 6" 10' 6" 8.25" 23.55" 12555 G 3000 1 2925
E850-HPR-G 85' 74' 6" 10' 6" 8.25" 23.55" 12685 H 3700 H1 3510
E850-JPR-G 85' 74' 6" 10' 6" 8.25" 23.55" 12855 J 4500 H2 4160
E850-KPR-G 85' 74' 6" 10' 6" 9.5" 24.8" 14345 K 5400 H3 4875
E850-LPR-G 85' 74' 6" 10' 6" 9.5" 24.8" 14630 L 6400 H4 5655
E850-MPR-G 85' 74' 6" 10' 6" 11.25" 24.8" 16260 M 7500 H5 6500
E850-NPR-G 85' 74' 6" 10' 6" 13.0" 27.3" 16605 N 8700 H6 7410
E900-GPR-G 90' 79' 11' 8.25" 24.45" 13755 G 3000 1 2925
E900-HPR-G 90' 79' 11' 8.25" 24.45" 13890 H 3700 H1 3510
E900-JPR-G 90' 79' 11' 8.25" 24.45" 14070 J 4500 H2 4160
E900-KPR-G 90' 79' 11' 9.5" 25.7" 15660 K 5400 H3 4875
E900-LPR-G 90' 79' 11' 9.5" 25.7" 15970 L 6400 H4 5655
E900-MPR-G 90' 79' 11' 11.25" 25.7" 17700 M 7500 H5 6500
E900-NPR-G 90' 79' 11' 13.0" 28.2" 18135 N 8700 H6 7410
E900-OPR-G 90' 79' 11' 14.75" 28.2" 19870 O 10000 H7† 8385
E950-LPR-G 95' 83' 6" 11' 6" 9.5" 26.6" 17360 L 6400 H4 5655
E950-MPR-G 95' 83' 6" 11' 6" 11.25" 26.6" 19190 M 7500 H5 6500
E950-NPR-G 95' 83' 6" 11' 6" 13.0" 29.1" 19665 N 8700 H6 7410
E950-OPR-G 95' 83' 6" 11' 6" 14.75" 29.1" 21495 O 10000 H7† 8385
E1000-KPR-G 100' 88' 12' 9.5" 27.5" 18450 K 5400 H3 4875
E1000-LPR-G 100' 88' 12' 9.5" 27.5" 18805 L 6400 H4 5655
E1000-MPR-G 100' 88' 12' 11.25" 27.5" 20810 M 7500 H5 6500
E1050-KPR-G 105' 92' 6" 12' 6" 9.5" 28.4" 19920 K 5400 H3 4875
E1050-LPR-G 105' 92' 6" 12' 6" 9.5" 28.4" 20300 L 6400 H4 5655
E1050-MPR-G 105' 92' 6" 12' 6" 11.25" 28.4" 22425 M 7500 H5 6500
E1100-KPR-G 110' 97' 13' 9.5" 29.3" 21445 K 5400 H3 4875
E1100-LPR-G 110' 97' 13' 9.5" 29.3" 21850 L 6400 H4 5655
E1100-MPR-G 110' 97' 13' 11.25" 29.3" 24085 M 7500 H5 6500

* Burial depths are assumed at 10% of pole length plus 2 feet
** Tip Diameter may vary by design
*** Wood pole equivalents are based upon NESC Grade B District Loading (0.65 Strength Factor). If other design criteria is required, please contact StressCrete to determine the required class. Min. Ultimate Transverse Load calculated at 2 feet from pole tip.
† Extrapolated
